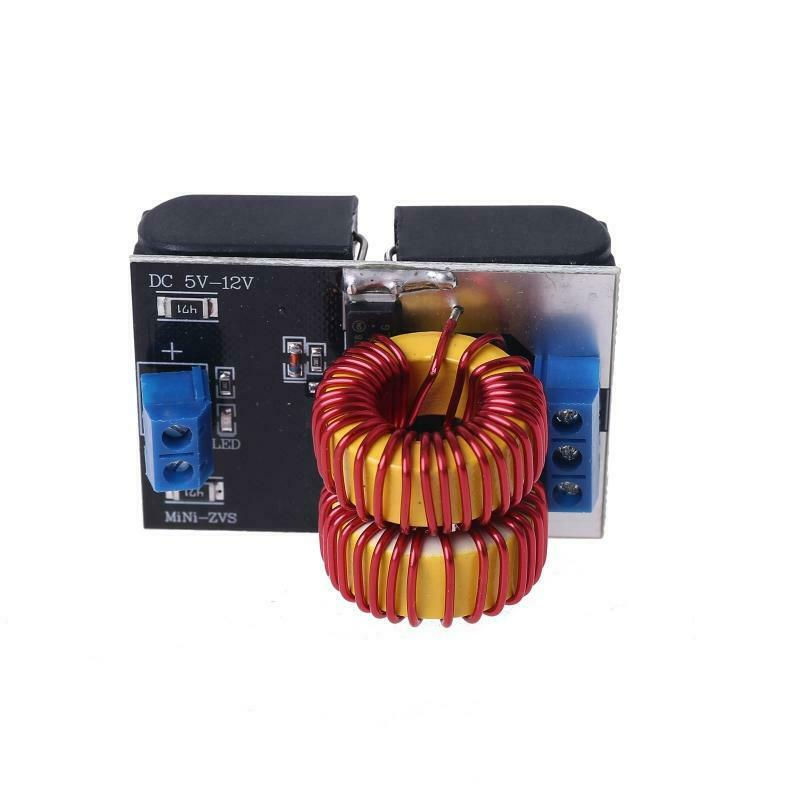

DC 5V-12V 120W Mini ZVS Induction Heating Board Flyback Driver Heater Coil E63

Specification:
Input voltage: 5v-12v
Module dimension: 55mm (L) * 40mm (W) * 20 mm (H)
Product Weight: 119 g
Coil size: length:7.5cm
width: 2.8cm

Features:
-ZVS heating power supply module including heating coil
-Input voltage DC5V-12V (We are not guaranteeing the module will work when the voltage is over 12V or less than 5V)
-Maximum power 120W (when 12V eddy-current heating)
-Ensure all the components welding right, power line connect in right way, setting up an electric circuit.
-The width of the heated object is as far as possible between the 1/3~1/2 of the inner diameter of the heating coil, the maximum not more than 2/3!

1. This mini board ZVS finished board, without heating coil, high voltage package, cooling fan, etc.

2. This kit requires certain hands-on skills and related knowledge. If you can't even use a soldering iron and the power supply's positive and negative poles can't be separated, it is recommended not to shoot. There is a problem with the photo, the seller will not bear it any responsibility!

3. The maximum power is 120W (when 12V induction heating). When the high voltage package is 12V and the primary 5+5 turns, it is about 30W.

4. The input voltage is DC5V~12V, this voltage range is the voltage when working, not the voltage when the power supply is no-load! (The seller does not guarantee normal operation if the voltage exceeds 12V or is lower than 5V. If the input voltage is not within this range, the seller will not be responsible for any problems!) When using batteries and battery power supplies, you must ensure that the voltage is above 4.5V when working! If you cannot ensure that the voltage is always above 4.5V during work, do not use batteries or batteries for power supply! Do not use dry batteries!
