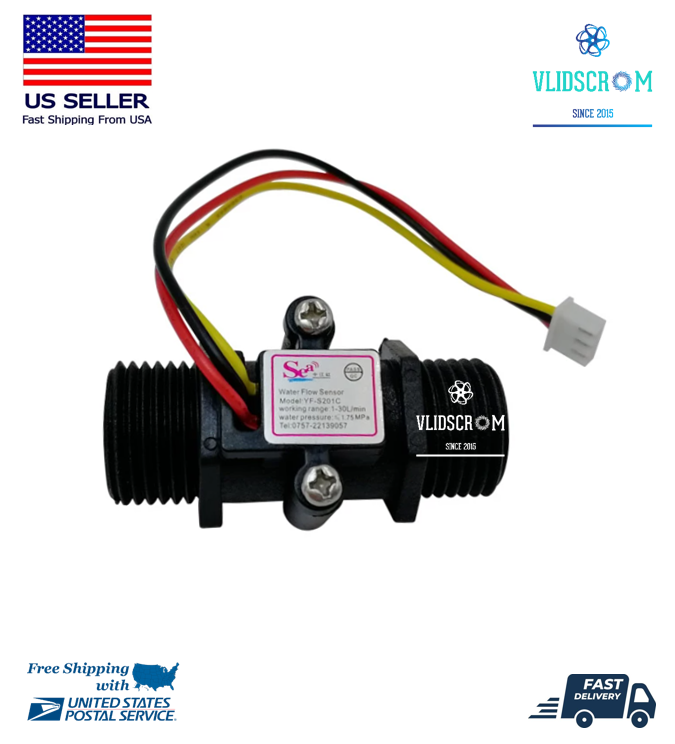

Flow Sensor Volume Sensor Turbo Flow Meter Water Pipes 1/2" Thread Arduino E105

Specification:
Measure e.g., the water consumption with your Arduino and the YF-S201C flow sensor. The module has two 1/2 "threads and can be connected to cold resp. Hot water pipes are connected. The water flow is measured using a Hall sensor - this makes this sensor particularly durable.

The flow rate can be evaluated on the yellow signal line using a microcontroller board, for example. The flow in L / min. with a tolerance of ± 3% it is calculated as follows: Frequency of the signal in Hz / 5 volume flow in L / min.

Please note that the sensor should be installed vertically if possible and is not designed for temperatures above 80°C.

Technical specifications:
Operating voltage: 5 - 18 V.
Maximum current consumption: 15 mA at 5 V.
Maximum water pressure: 1.75 MPa
Measuring range: 1 - 30 L / min.

Package Includes: 1 x Flow Sensor Volume Sensor Turbo Flow Meter Water Pipes 1/2"
